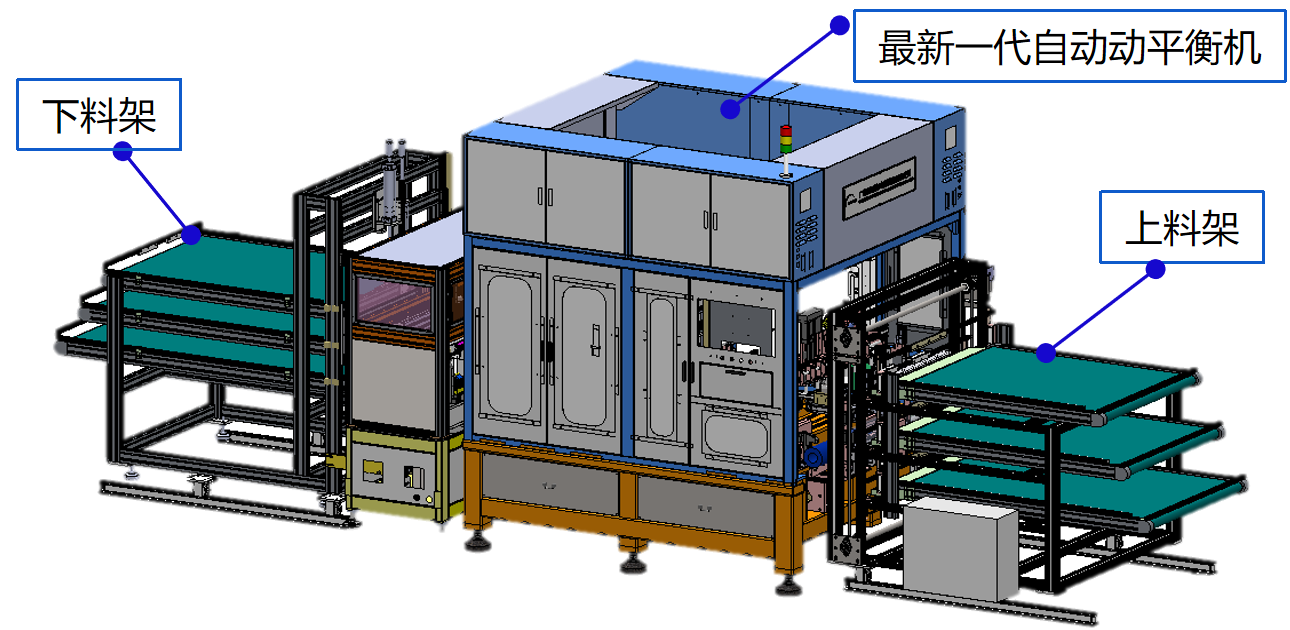

Automatic Dynamic Balancing Equipment for Cross-Flow Fan Blades
- Product Description Universal Compatibility, High Efficiency, Fast Changeover, Optional Functions, Low-Cost Blade Feeding, Strong Scalability
-
Product Features
◎ Universal Compatibility:Compatible with various types of cross-flow fan blades, including O-type and D-type bushings, without requiring additional adaptations or modifications, ensuring broad applicability.
◎ High Efficiency:Taking the example of a two-balance-weight configuration, the equipment completes one production cycle in just 18 seconds, achieving a daily output of up to 3,500 units and significantly boosting production capacity.
◎ Fast Changeover:One-click program changeover enables model switching within 30 minutes, flexibly accommodating multi-category production needs and reducing line adjustment time.
◎ Optional Functions:Supports optional static imbalance functionality, automatically performing weight removal or addition based on detection data. It precisely balances the intermediate section of the blade, quickly reducing imbalance to within standard ranges to ensure dynamic balance accuracy. Additionally, an automatic compensation function makes real-time adjustments for minor deviations, further enhancing correction effectiveness.
◎ Low-Cost Blade Feeding:Utilizes a coil stamping and feeding method, effectively reducing material and processing costs, thereby enhancing production economy.
◎ Strong Scalability:Allows for integration with additional functions such as visual inspection of finished cross-flow products, laser marking, and powered rack loading. It also supports connectivity with MES systems, facilitating smart factory upgrades and meeting future production line expansion requirements.
Product Parameters
| Item | Description |
|---|---|
| Equipment Dimensions | 6486x2850x2490mm |
| Operating Voltage | 380V/50Hz |
| Operating Air Pressure | 0.55-0.8MPa |
| Cycle Time |
A. If the incoming raw unbalance per side is ≤ 1.25 g, the cycle time is 18 seconds. B. If the incoming raw unbalance per side exceeds 1.25 g, both cycle time and pass rate will be affected. |
| Applicable Product Specifications |
1、Product diameter: Φ82–Φ110 mm 2、Product length: 500–1000 mm, with forward blades 3、Bushing specifications: round hole; D-shaped hole available on a customized basis; bushing length ≤ 25 mm 4、Incoming material requirements: raw unbalance ≤ 1.25 g 5、Compatible with both internal and external balancing |
| Runout Measurement | A. Diameter runout: < 0.5 mm B. Shaft runout: < 0.1 mm C. Includes 5 intermediate measurement heads + 1 steel shaft measurement head |
| Pass Rate |
A. When incoming raw unbalance per side is ≤ 1.25 g, the pass rate is ≥ 95%. B. When incoming raw unbalance per side exceeds 1.25 g, the pass rate will decrease. It is recommended to control the raw unbalance of incoming materials. |
| Automatic Balance Weight Feeder | Raw material: stainless steel 430; 3 kg coil; inner diameter 100 mm +3 mm. Punching head service life: up to 50,000 strokes; can reach 150,000 strokes after sharpening. |
| Loading/Unloading Rack Capacity | For products with a diameter ≤ 110 mm, each rack holds more than 30 workpieces per load. |
