Cross-Flow Fan Finished Product Visual Inspection

Product Description Full Visual Inspection of Finished Products, Runout Inspection, Flexible Dynamic Balancing Inspection, Customizable Full Inspection / Spot Check
Product Features ◎ 1. Full Visual Inspection of Finished Products
◎ Comprehensive inspection of cross-flow fans covering surface defects, runout measurement, and dynamic balancing. The system is equipped with an AI-powered vision engine that performs in-depth analysis of image data, intelligently classifies results based on a predefined defect feature library, and automatically sorts acceptable and non-conforming products.
◎ 2. Runout Inspection
◎ Covers spindle runout and radial runout, capturing critical deviation data during fan operation in real time to proactively mitigate performance risks caused by mechanical vibration.
◎ 3. Flexible Dynamic Balancing Inspection
◎ Supports dynamic balancing tests at customer-defined rotational speeds to accommodate diverse production standards, ensuring precise dynamic balance performance and enhancing product operational stability.
◎ 4. Customizable Full Inspection / Spot Check
◎ Allows flexible selection between full inspection and spot check modes based on production volume. The production line can switch modes as needed, balancing high efficiency with quality control to suit different order scenarios.

Product Parameters

Item	Description
Equipment Dimensions	4500X1720X2000mm
Operating Voltage	220V/50Hz
Operating Air Pressure	0.55-0.8MPa
Cycle Time	Reference cycle time 15 s (for 9+2 product)
Applicable Product Specifications	1.Product diameter: Φ85–Φ120 mm 2.Product length: 500–950 mm 3.Compatible with forward-blade, straight-blade, and inclined-blade designs 4.Boss hole: Φ8 mm, boss length ≤ 25 mm; compatible with round holes and both internal/external trimming types 5.Steel shaft on end cover: shaft length 15–35 mm, shaft diameter Φ6–Φ8 mm (Specifications outside the above ranges require customization)
False Rejection Rate Control	Three adjustable threshold levels are available for overall product defects, allowing quick adjustment of inspection sensitivity. The thresholds serve as reference values and can be relaxed based on the actual condition of incoming products.
Pass Rate	False rejection rate ≤ 5%, missed detection rate ≤ 0.5%

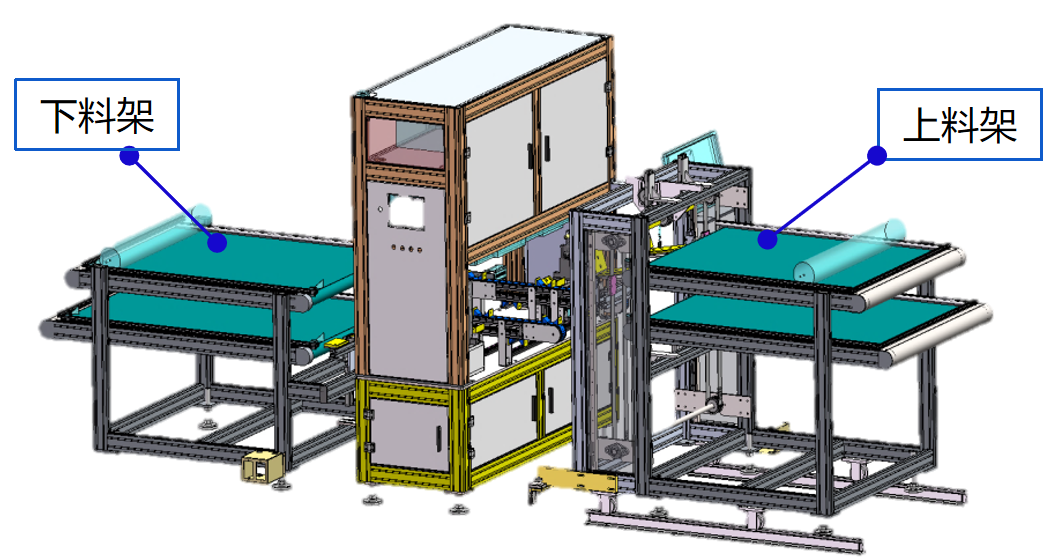

Loading/Unloading Rack Storage Capacity	For products with diameter ≤ 110 mm, each rack can store more than 15 units at a time.
